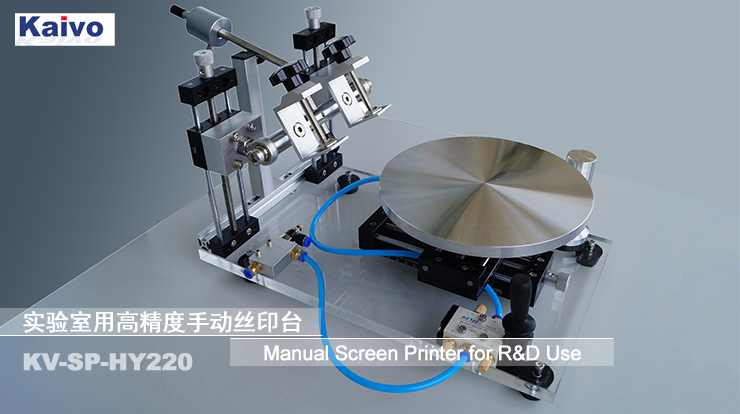

Manual Screen Printer for R&D Use

KV-SP-HY220

The Manual Screen Printer is designed for R&D use, Chinese patent number ZL 2019 2 1742267.2,it can be used to print the electrode materials, the functional materials, and the electronic packaging materials in the fabrication and the encapsulation of electrochromic devices, OPV, OLED, dye - sensitized solar cells,perovskite solar cells , LCD, et al.

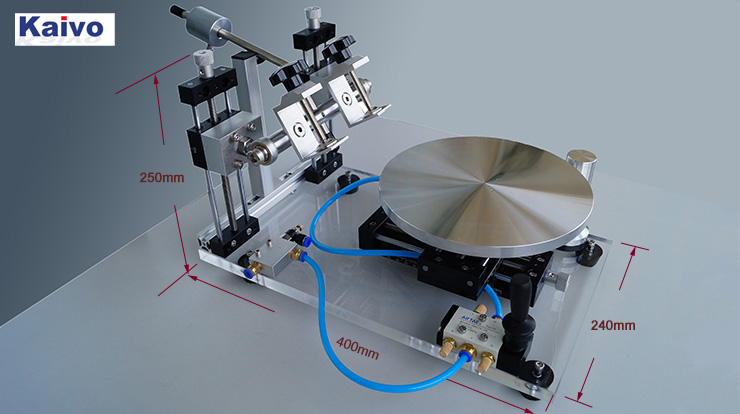

Size:

Baseplate: 240 mm x 400 mm

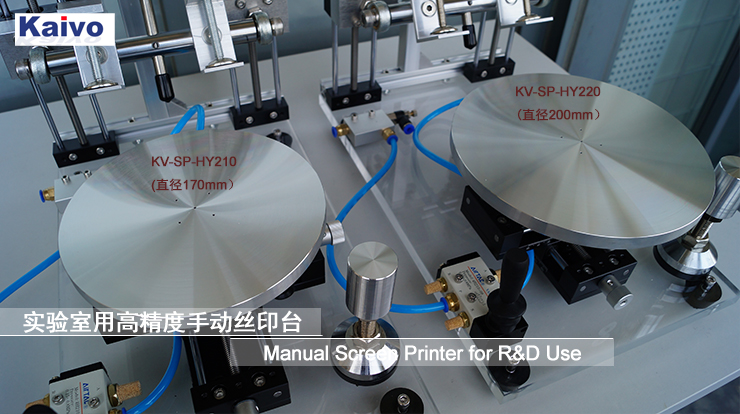

Diameter of the working table: 200 mm

X axis adjustable distance: 100 mm

Y axis adjustable distance: 60 mm

Features

1) X, Y, Z, R four axis adjustment.

2) The location becomes more convenient and accurate with the visual scale adjustment design.

3) Rotary vacuum adsorption working table.

4) Vacuum degree control valve, the adsorption capacity can be adjusted.

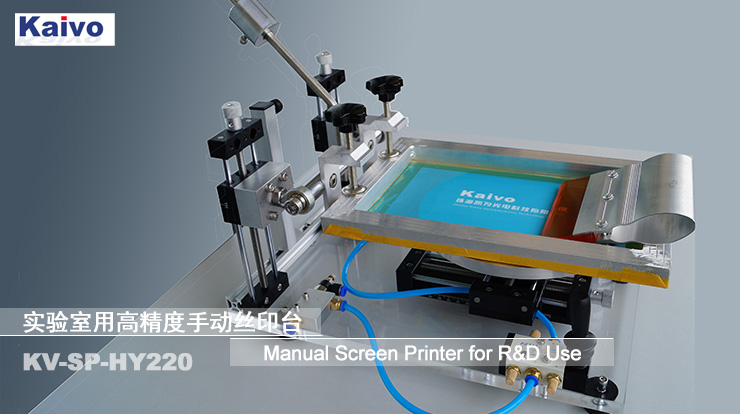

5) Push rod vacuum valve design, it is convenient to move and replace the screen printing substrate.
